Introduction

In this tutorial we’ll create a simple chat app using Deno. Our chat app will allow multiple chat clients connected to the same backend to send group messages through web sockets. After a client chooses a username, they can then start sending group messages to other online clients. Each client also displays the list of currently active users.

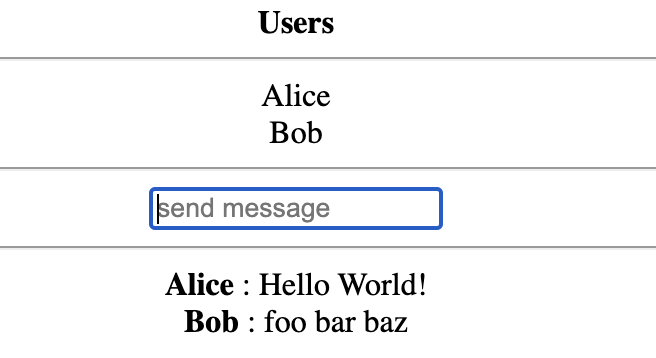

Untitled

Building the View

We can build the simple UI shown above with the following as our index.html. Note that the app.js script is our chat client (which will be discussed in detail later)

<!-- index.html -->

<html>
  <head>
    <title>Chat App</title>
    <script src="/public/app.js"></script>
  </head>
  <body>
    <div style="text-align: center">
      <div>
        <b>Users</b>
        <hr />
        <div id="users"></div>
        <hr class="visible-xs visible-sm" />
      </div>
      <div>
        <input id="data" placeholder="send message" />
        <hr />
        <div id="conversation"></div>
      </div>
    </div>
  </body>
</html>

WebSocket Primer

We will rely on Deno’s native support for web sockets when building our client and server. A web socket is a bidirectional communication channel that allows the both the client and server to send messages to each other at any time. Web sockets are frequently used in realtime applications where low latency is critical. Each of our clients will keep a web socket connection open to our server so they can receive the latest messages and user logins without constantly polling.

Chat Client

The chat client app.js runs in the browser and listens for updates from our server and then manipulates the DOM. Specifically our client is listening for new messages and the list of currently active users. We need to add event handlers to our client’s web socket to specify what happens when our clients receives a new message or event.

// app.js

const myUsername = prompt("Please enter your name") || "Anonymous";
const socket = new WebSocket(
  `ws://localhost:8080/start_web_socket?username=${myUsername}`,
);

socket.onmessage = (m) => {
  const data = JSON.parse(m.data);

  switch (data.event) {
    case "update-users":
      // refresh displayed user list
      let userListHtml = "";
      for (const username of data.usernames) {
        userListHtml += `<div> ${username} </div>`;
      }
      document.getElementById("users").innerHTML = userListHtml;
      break;

    case "send-message":
      // display new chat message
      addMessage(data.username, data.message);
      break;
  }
};

function addMessage(username, message) {
  // displays new message
  document.getElementById(
    "conversation",
  ).innerHTML += `<b> <span class="katex"><span class="katex-mathml"><math xmlns="http://www.w3.org/1998/Math/MathML"><semantics><mrow><mrow><mi>u</mi><mi>s</mi><mi>e</mi><mi>r</mi><mi>n</mi><mi>a</mi><mi>m</mi><mi>e</mi></mrow><mo>&lt;</mo><mi mathvariant="normal">/</mi><mi>b</mi><mo>&gt;</mo><mo>:</mo></mrow><annotation encoding="application/x-tex">{username} &lt;/b&gt;: </annotation></semantics></math></span><span class="katex-html" aria-hidden="true"><span class="base"><span class="strut" style="height:0.5782em;vertical-align:-0.0391em;"></span><span class="mord"><span class="mord mathnormal">u</span><span class="mord mathnormal" style="margin-right:0.02778em;">ser</span><span class="mord mathnormal">nam</span><span class="mord mathnormal">e</span></span><span class="mspace" style="margin-right:0.2778em;"></span><span class="mrel">&lt;</span><span class="mspace" style="margin-right:0.2778em;"></span></span><span class="base"><span class="strut" style="height:1em;vertical-align:-0.25em;"></span><span class="mord">/</span><span class="mord mathnormal">b</span><span class="mspace" style="margin-right:0.2778em;"></span><span class="mrel">&gt;:</span></span></span></span>{message} <br/>`;
}

// on page load
window.onload = () => {
  // when the client hits the ENTER key
  document.getElementById("data").addEventListener("keypress", (e) => {
    if (e.key === "Enter") {
      const inputElement = document.getElementById("data");
      var message = inputElement.value;
      inputElement.value = "";
      socket.send(
        JSON.stringify({
          event: "send-message",
          message: message,
        }),
      );
    }
  });
};

Chat Server

oak is the Deno middleware framework that we’ll be using to set up our server. Our server will return the plain index.html file previously shown when the user first navigates to the site. Our server also exposes a ws_endpoint/ endpoint which the chat clients will use to create their web socket connection. Note that the client’s initial HTTP connection is converted into a WebSocket connection by the server via HTTP’s protocol upgrade mechanism. Our server will maintain web socket connections with each active client and tell them which users are currently active. Our server will also broadcast a message to all active clients whenever there is a new message so that each client can display it.

// server.js

import { Application, Router } from "https://deno.land/x/oak/mod.ts";

const connectedClients = new Map();

const app = new Application();
const port = 8080;
const router = new Router();

// send a message to all connected clients
function broadcast(message) {
  for (const client of connectedClients.values()) {
    client.send(message);
  }
}

// send updated users list to all connected clients
function broadcast_usernames() {
  const usernames = [...connectedClients.keys()];
  console.log(
    "Sending updated username list to all clients: " +
      JSON.stringify(usernames),
  );
  broadcast(
    JSON.stringify({
      event: "update-users",
      usernames: usernames,
    }),
  );
}

router.get("/start_web_socket", async (ctx) => {
  const socket = await ctx.upgrade();
  const username = ctx.request.url.searchParams.get("username");
  if (connectedClients.has(username)) {
    socket.close(1008, `Username ${username} is already taken`);
    return;
  }
  socket.username = username;
  connectedClients.set(username, socket);
  console.log(`New client connected: ${username}`);

  // broadcast the active users list when a new user logs in
  socket.onopen = () => {
    broadcast_usernames();
  };

  // when a client disconnects, remove them from the connected clients list
  // and broadcast the active users list
  socket.onclose = () => {
    console.log(`Client ${socket.username} disconnected`);
    connectedClients.delete(socket.username);
    broadcast_usernames();
  };

  // broadcast new message if someone sent one
  socket.onmessage = (m) => {
    const data = JSON.parse(m.data);
    switch (data.event) {
      case "send-message":
        broadcast(
          JSON.stringify({
            event: "send-message",
            username: socket.username,
            message: data.message,
          }),
        );
        break;
    }
  };
});

app.use(router.routes());
app.use(router.allowedMethods());
app.use(async (context) => {
  await context.send({
    root: `${Deno.cwd()}/`,
    index: "public/index.html",
  });
});

console.log("Listening at http://localhost:" + port);
await app.listen({ port });

We can start our server with the following command. Note we need to explicitly grant access to the file system and network because Deno is secure by default.

deno run --allow-read --allow-net server.js

Now if you visit http://localhost:8080 you will be able to start a chat session. You can open 2 simultaneous windows and try chatting with yourself.

Example Code

You can find the entire example code here.
